What Wheels and Tires Fit a 5th Gen Ram 1500? (2019-2026)
August 26, 2026
Fitment Guide // Half-Ton Series
What Wheels And Tires Best Fit A 5th Gen Ram 1500? (2019-2026)
Stock trucks suck. Fix yours.
The DT-platform Ram is a half-ton truck that offers huge aggressive fitment potential, with coil rear suspension, huge wells, and smaller factory offset numbers than Ford or GM. It is also a truck with a ton of potential issues to consider, and it has nothing to do with wheels. It has to do with which Ram you actually own.
Bolt Pattern And Factory Specs
| Bolt Pattern | 6x5.5" (6x139.7mm) |
|---|---|
| Hub Bore | 77.8mm |
| Lug | M14 x 1.5 nut |
| Lug Torque | 130 lb-ft |
| Stud Length | 35mm |
| TPMS | Yes |
| Factory Reference (18") | 18x8 +17mm, 275/65R18 (5.17" backspacing) |
| Factory Reference (20") | 20x9 +18mm, 275/55R20 (5.71" backspacing) |
Factory offsets of +17 and +18 are the smallest in the class, which is why a stock Ram already looks flush where competitors don't. It also means the jump to aggressive offsets is smaller here than on any other half-ton. The hub bore is 77.8mm, close to GM 78.1 but not the same, so hub-centric rings matter if a wheel was bored for the Chevy.
Recommended Fitments
The Ram rewards going bigger sooner. Easy fitments on this truck run sizes that count as aggressive on other platforms.
| Suspension | Easy Fitment | Aggressive Fitment |
|---|---|---|
| Stock | 20x9 +18 to +32, 275/60R20 | 20x10 -25 to -12, 33x12.50 |
| Leveling Kit | 20x10 -19 to -5, 33x12.50 | 20x12 -51 to -38, 33x12.50 |
| 4" Lift | 20x10 -25 to -12, 35x12.50 | 20x12 -55 to -44, 35x12.50 |
| 6" Lift | 20x12 -44 to -32, 35x12.50 | 24x14 -81 to -69, 35x13.50 |

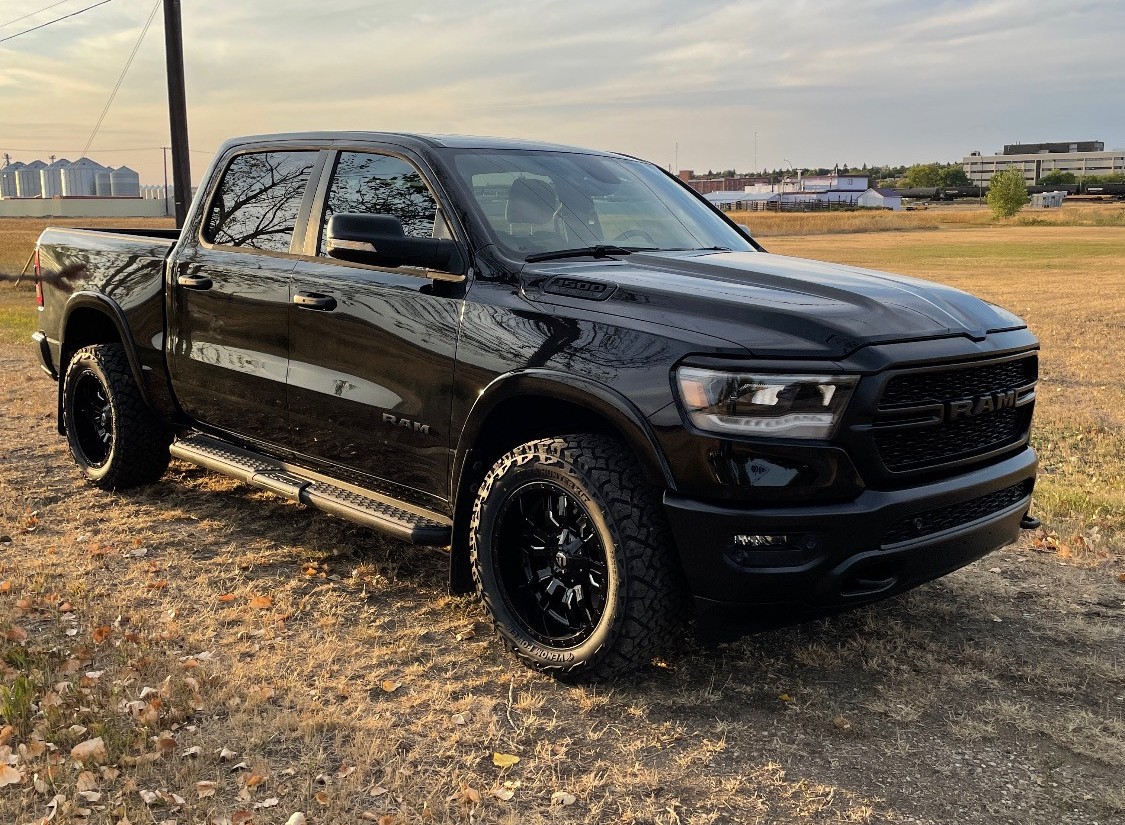

A 33x12.50 on a 20x10 -18 with zero suspension work. No other half-ton in this guide series does that. Expect liner contact at full lock.

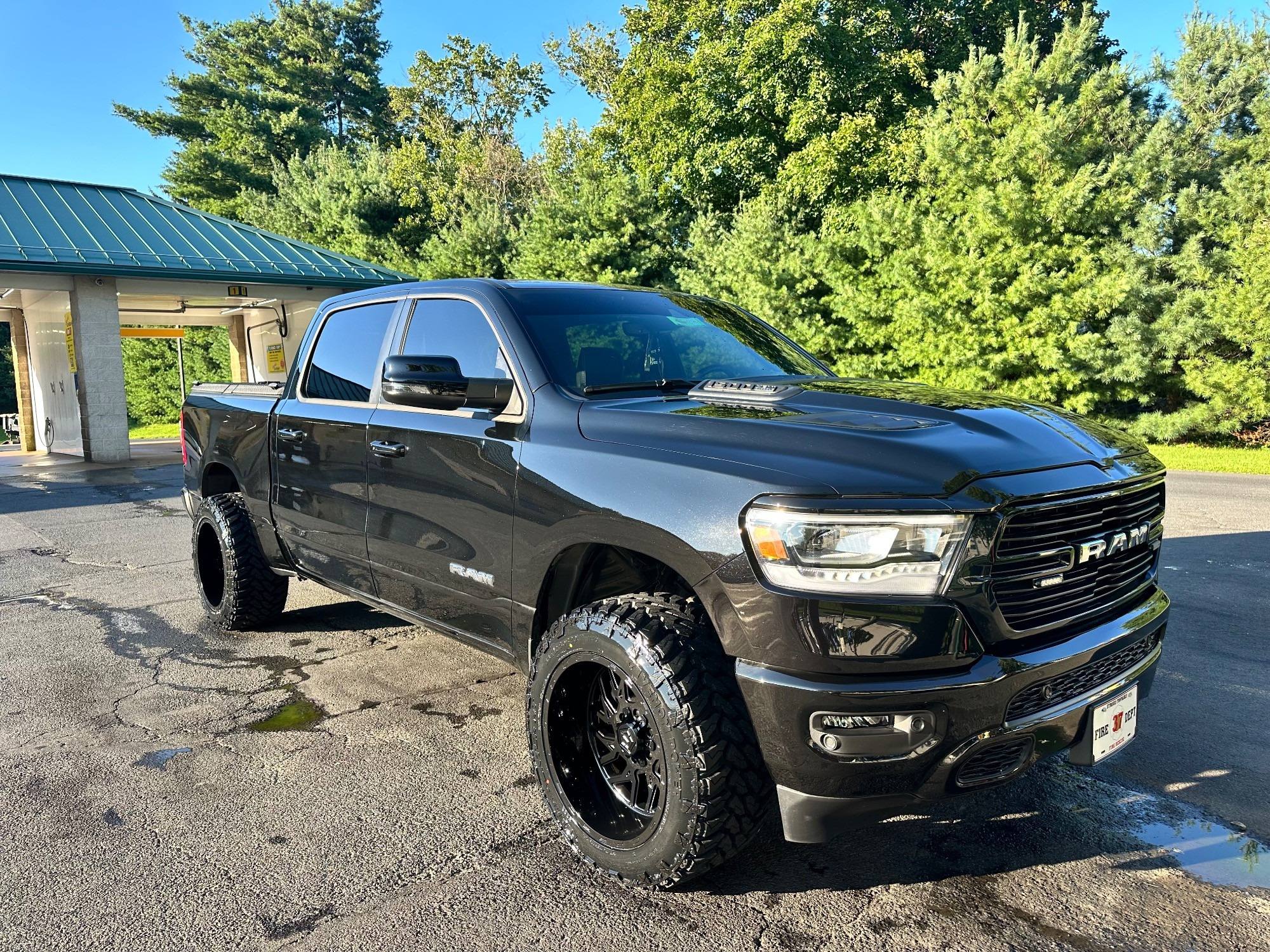

33s become the default. The 20x12 -44 combo is pure stance, although you'll need to trim the body to avoid any rubbing issues. Shop leveling kits.

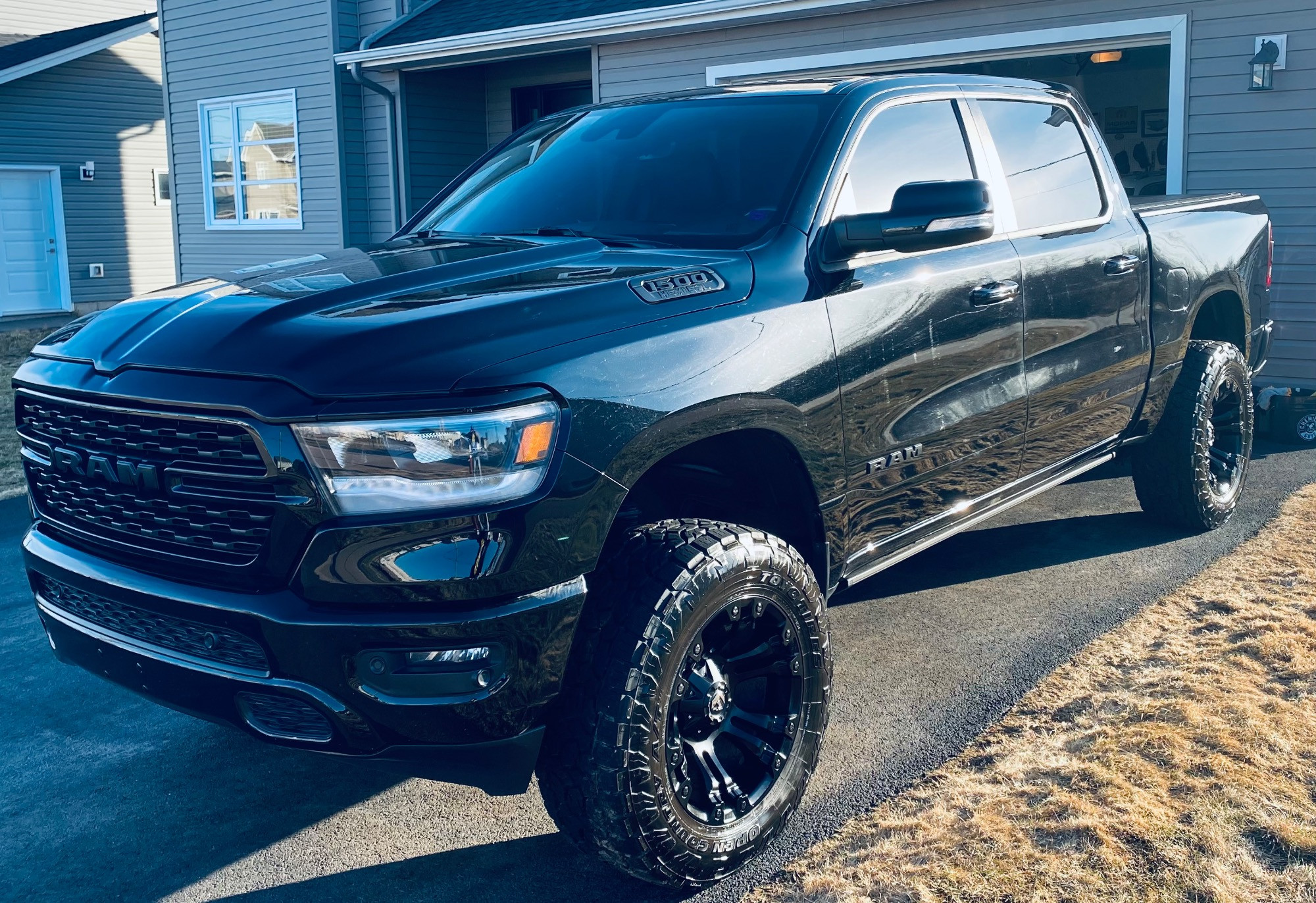

35s bolt on here. The 20x10 -18 with a 35x12.50 is the sweet spot of this entire platform, big tire, drivable geometry, minimal cutting. Shop 4-inch lift kits.

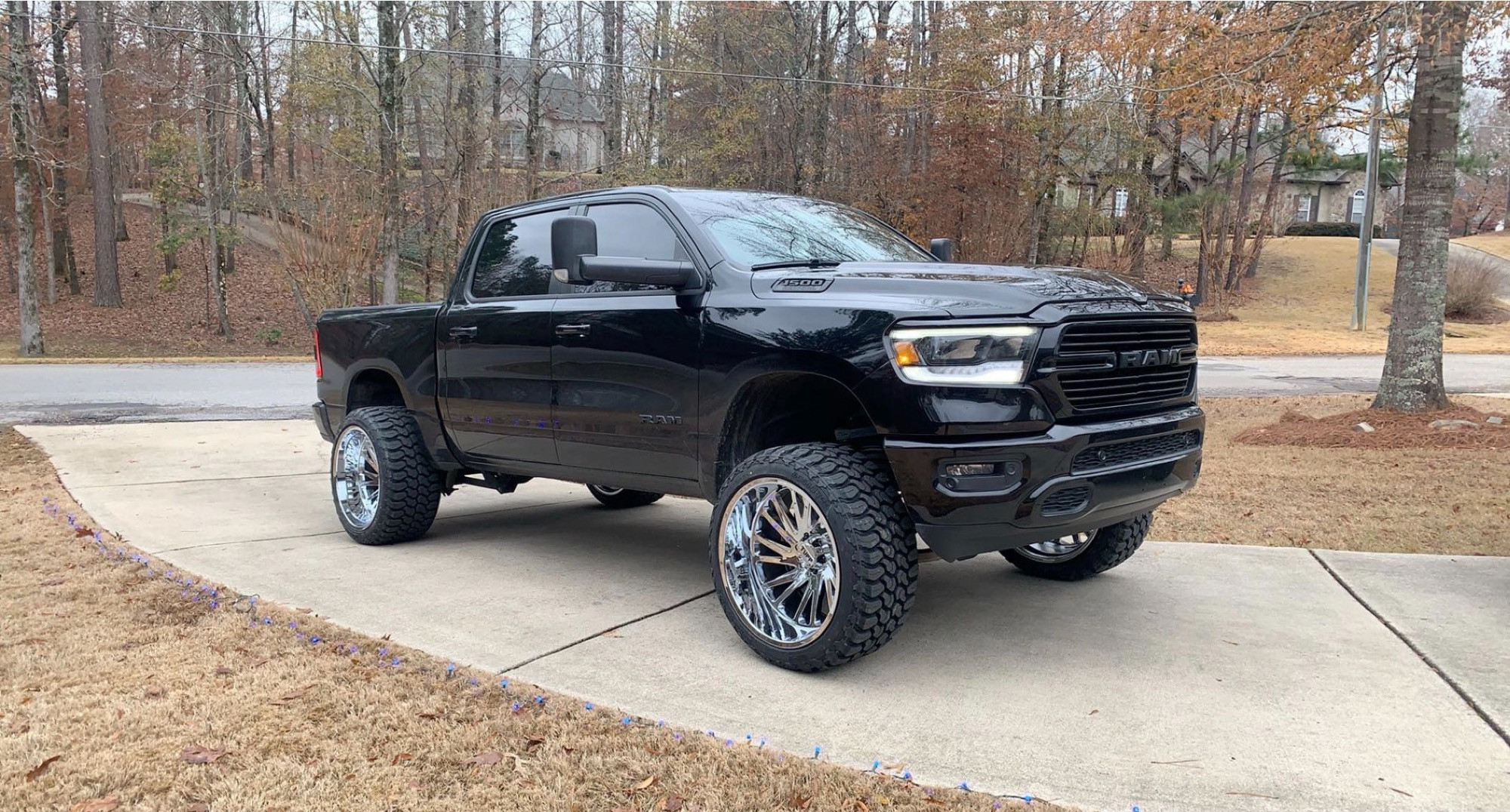

The 24x14 -76 on a 35x13.50 is as aggressive as published half-ton fitment gets. Trimming required, and worth saying plainly: at -76 you are choosing the show lane over the tow lane.
See It Before You Buy It
Specs tell you it fits. The gallery shows you what it looks like bolted to a real truck in a real driveway. Every Ram 1500 build in there lists the exact wheel, tire, offset, and suspension, plus whether the owner had to trim to make it work. Find a truck set up like yours, copy the recipe, skip the guesswork.
